Manufacturer |
Powerex Inc |
|
Manufacturer Part Number |

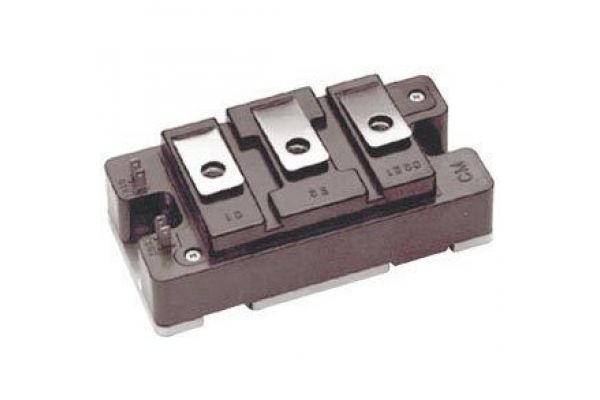

CM75DU-12F |
|
Description |
IGBT MOD DUAL 600V 75A F SER |
|
Lead Free Status / RoHS Status |
Lead free / RoHS Compliant |
|
IGBT Type |
Trench |
|
Configuration |
Half Bridge |
|
Voltage - Collector Emitter Breakdown (Max) |
600V |
|
Vce(on) (Max) @ Vge, Ic |
2.2V @ 15V, 75A |
|
Current - Collector (Ic) (Max) |
75A |
|
Current - Collector Cutoff (Max) |
1mA |
|
Input Capacitance (Cies) @ Vce |
20nF @ 10V |
|
Power - Max |
290W |
|
Input |
Standard |
|
NTC Thermistor |
No |
|
Mounting Type |
Chassis Mount |
|
Package / Case |
Module |
|
Supplier Device Package |
Module |
